600V UL1617 Single Conductor with Extruded Non-Integral Covering Heat Resistant Flame Resistant Cable

Name: 600V UL1617 Single Conductor with Extruded NonIntegral Covering Heat Resistant Flame Resistant Cable
Brand: ECHU
Price: 0.123 USD

600V UL1617 Single Conductor with Extruded Non-Integral Covering Heat Resistant Flame Resistant Cable Manufactures

Brand Name : ECHU

Model Number : UL1617

Certification : UL. E312831

Place of Origin : China

MOQ : 305m

Price : 0.123-0.263USD/M

Payment Terms : T/T, Western Union

Supply Ability : 100000km/week

Delivery Time : 7days

Packaging Details : 305meter per roll

Product Name : UL1617 Electrical wire

Conductor : bare copper or tinned copper

Colors : 12 different kinds of Color

Company type : Manufacturer

Range of Application : Internal Wiring

Brand : ECHU

Voltage : 600V

Temperature : 105℃

Contact Now

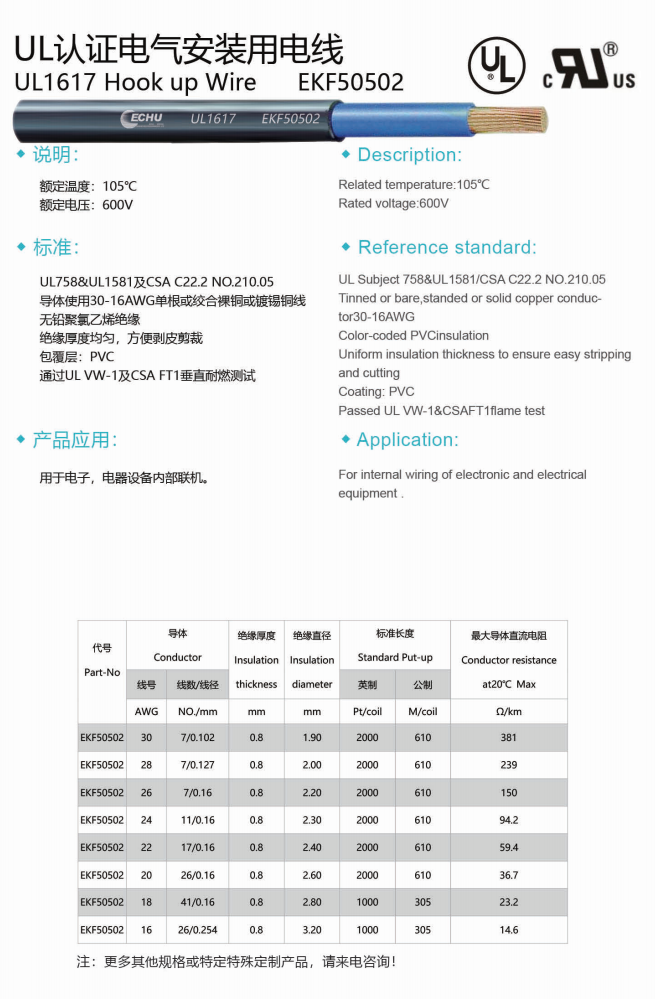

Product Description:

UL1617 Double Insulated Copper Electric Wire Hook up Wire Electric Wires Cables

PRODUCT DESCRIPTION:

★ Rated temperature: 105ºC
★ Rated voltage: 600V
★ Reference Standard: UL Subject 758, UL1581 C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor, 30-16 AWG
★ Colour-coded lead free PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment

600V UL1617 Single Conductor with Extruded Non-Integral Covering Heat Resistant Flame Resistant Cable
