CC-Link Data Bus Cable, ECHU Cable

Name: CCLink Data Bus Cable ECHU Cable
Brand: ECHU
Price: 0.5 USD

CC-Link Data Bus Cable, ECHU Cable Manufactures

Brand Name : ECHU

Model Number : CC-Link

Certification : CE

Place of Origin : China

MOQ : 100M

Price : USD0.5-USD0.921/m

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000KM/week

Delivery Time : 10day after receiving payment

Packaging Details : splint reel/ splint box

Type : Insulaton

Application : bus system

Rated Voltage : 300V

Rated Temp : -15℃-+80℃

Conductor Material : Tinned copper stranded conductor

Color : Red

Insulation : foamed PE

Jacket : PVC

Contact Now

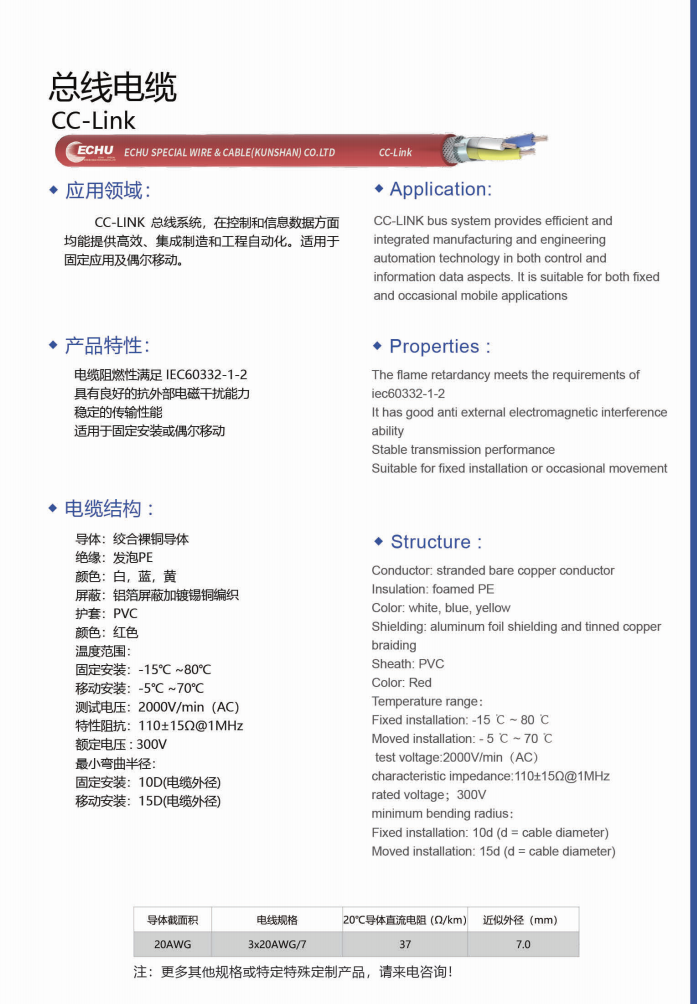

CC-Link Data Bus Cable

The CC-Link Data Bus Cable is designed for CC-LINK bus systems, featuring a 3-core structure with aluminum foil and braided shielding, offering superior electromagnetic interference resistance. The cable incorporates low dielectric constant foamed PE insulation and a high-quality PVC jacket, ensuring reliable performance and durability. With a characteristic impedance of 110 ohms, this cable is ideal for industrial communication networks requiring robust and stable data transmission.

Applications of CC-Link Data Bus Cable

- Suitable for CC-Link bus systems

- Supports control and information data transmission

- Ideal for integrated manufacturing and automation

- Appropriate for fixed applications

- Applicable for occasional movement scenarios

Technical Data of CC-Link Data Bus Cable

Electrical Performance	Impedance	110 Ohms
Electrical Performance	Rated Temperature	80°C
Construction	Conductor	Stranded Bare Copper Conductor
	Insulation	Foamed PE
	Shielding	Aluminum Foil + Tinned Copper Braiding
	Sheath	PVC
Flame Retardancy	Complies with IEC 60332-1-2
Default Sheath Color	Red (Other colors can be customized according to customer requirements)

CC-Link Data Bus Cable, ECHU Cable

CC-Link Data Bus Cable, ECHU Cable Images
