ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system

Name: ECHU ETHERNET FLEX CAT6A Cable suitable for generic cabling system
Brand: ECHU
Price: 01 USD

ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system Manufactures

Brand Name : ECHU

Model Number : ETHERNET CAT6A

Certification : CE

Place of Origin : CHINA

MOQ : 300m

Price : USD01-USD1.638/M

Payment Terms : T/T, L/C

Supply Ability : 10000KM/day

Packaging Details : in roll, splint boxes, cartons

Color : Grey

Contact Now

The Ethernet CAT5e Cable is an industrial-grade network cable utilizing high-purity oxygen-free copper conductors. ETHERNET CABLE FLEX CAT 6A

Application:

As a high-speed data cable, it is applied to the synthesize cabling system of cloud computing center, large data room, office, residential area, factory and other buildings

Properties:

Cable flame retardancy meets IEC60332-1-2

Shield cable has excellet anti external electromagnetic interference ability

The signal transmission frequency can reach 500MHZ

Structure:

Conductor: solid bare copper conductor

Insulation: foamed PE

Shielding: AL/Mylar individual screen and tinned copper wire overall braid

Sheath: PVC

Color: Yellow (other colors can be formulated according to customer requirements)

Temperature range:

Fixed installation: -15℃ to 80℃

Test Voltage: 1000V/min (DC)

Characteristic impedance: 100+/-15Ω @100MHZ

Insulation resistance: >/= 5g Ω .Km

Mininum beding radius

Fixed installation: 10D (d=cable diameter)

ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system

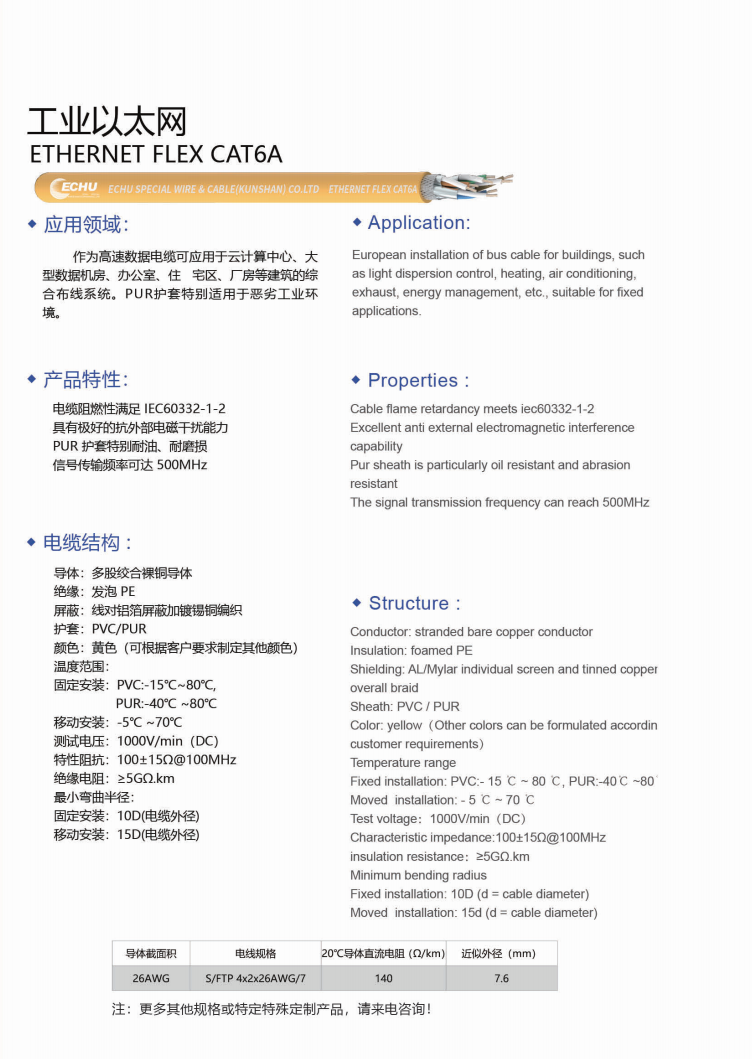

ECHU ETHERNET FLEX CAT6A Cable, suitable for generic cabling system Images
